ZigBee Automatic 38mm Smart Tubular Roller Blinds Motor RF433 Remote Control

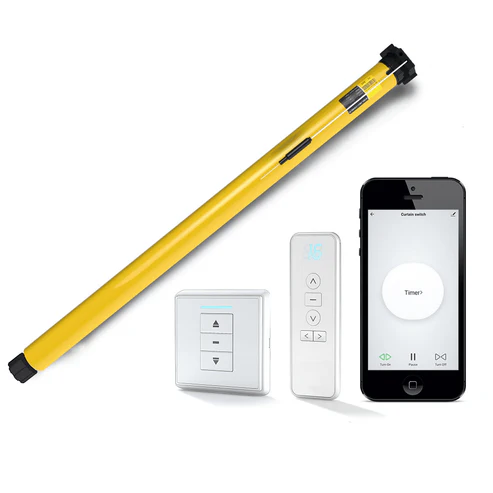

MOES ZigBee Smart Roller Blinds Motor (ZC-AM25-20). Motorized roller blind controller with ZigBee 3.0 connectivity. Pairs with Tuya Smart App for scheduling, remote control, and automation. Compatible with Alexa and Google Home. Supports position percentage control for precise blind adjustment.
RF Wall remote control as crystal type single or double channel emitter or protable remote with single,double,six and sixteen channels availablefor adding convenience to control connected devices.
A ZigBee hub is required for connecting with the motor.
Powerful enough to work with various motorized roller blinds,roller shutter,wooden venetian blinds,and even motorized clothes pole.
Multiple 6 limits setting by remote:6 limits can be set(2 end limits and 4 middle limits）via Remote,simplify your operation in different locations.
Automatic correction function for the displacement generated by braking.Compatible with Alexa Echo and Google Home in MOES app.
Ultra-quiet design supports to lower noise to 40dB.Stop at obstacle to protect the device and users from damage;Short circuit protection&open circuit protection for sensor.
Application：
Automatic 25mm Smart ZigBee Tubular Roller Blinds Motor DC Lithium Built-in Receiver RF433 Remote Control for 38mm Tube
Package Listing:
Tubular Motor*1(RF remote not included)
Basic Kit*1( Wall Bracket 2 , Idler1)
English Manual*1

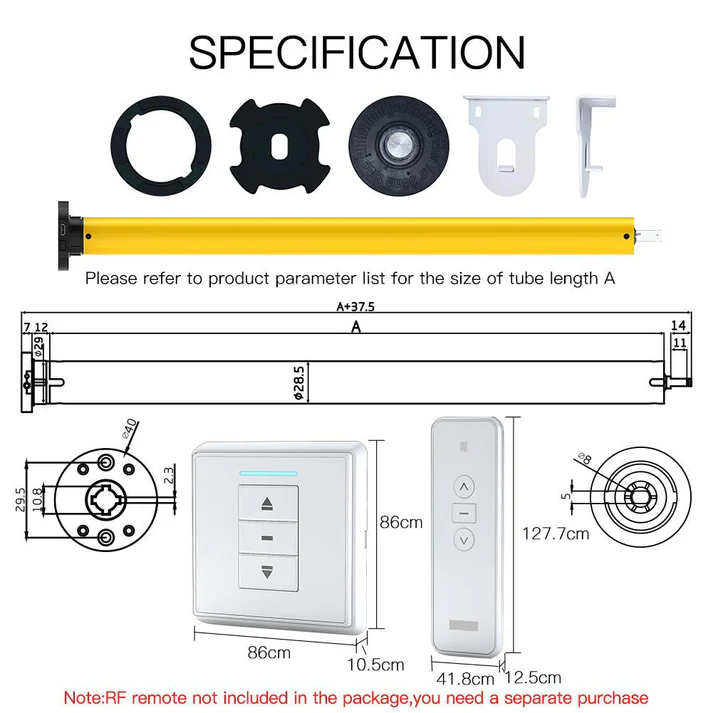

Parameter:
Item Name: Tubular Roller Blinds Motor
Item No.: AM25-/30-ES-EZ
Motor Diameter: 25mm
Driving Tube Diameter: 38mm
Voltage: DC7.4V
Rated Current: 900mA
Rated Torque: 1 N.m
Rated Speed: 30 rpm
Smart Control App: MOES
Voice Control: with Amazon Alexa Echo/ Google Home
